Command Reference
Comments starts by:
//
Everything after // is treated as comment and will be ignored.
If a // is the only command on a row it still will take time to process (defined by the speed).
The commands can be written with any case you want (upper, lower or mixed).
If it's an unknown command it will be sent to the connected instrument. Se the chapter "send to instrument" for important information abut formatting the string to send to instrument.
NOP
Don't do anything expect pause the time as set by speed
Floating point numbers
NOTE! All floating point handling is done using dot "." as decimal separator since this is the format used by the instruments.›
Arguments
Arguments to all the commands are separated with space, if you want to include space in the argument use double quote. To use a variables value precede the argument with @.
Examples
argument
volt
"also one argument"
@volt
Connection Commands
OPEN [address] [port]
Open connection to instrument at using
If is not specified default to 5025
If no arguments are supplied it will open
connection to the instrument opened in
connection view.
Example
Open 10.0.1.1 5025
Open 10.1.1.1
Open
OPENF [favorite]
Open connection to the favorite [favorite] saved in the connection view. can be between 1 and last favorite.
Example
Openf 1
CLOSE
Closes the current connection.
This command is not necessary to use since the script engine takes care of closing open connection automatically. It's only included for completeness.
Example
Close
BUFFSIZE [size]
BUFFSIZE
Changes the read buffer size to [size] for the next open. If non argument the defaults t0 4096.
Min: 1024 (1 Kilobyte)
Max: 1073841824 ( 1 Gigabyte)
Default: 4096 (4 Kilobytes)
Variable Commands
Variables can be named anything (exception see below), UPPER and lowercase is different.
To get the variables content begin variable name with @.
Reserved variables:
average# - Average of statistics
avg# - Average of statistics
buffsize - Current buffer size
buildnr - Returns the SCPI-Commande buildnr
currentrow - Current executing row
date - Current date in local short form
errormsg - The last error message, empty then no error
errorno - Last error number, see appendix
errorrow - Row number of the last error, -1 no error
index - Current loop index value
max# - Maximum value of statistics
mean# - Average of statistics
median# - Median of statistics
med# - Median of statistics
min# - Minimum values of statistics
scriptname - Name of current script.
- ”(not saved)” if not saved
speed - Returns the current speed
stat# - Number of statistical values
stddev# - Standard deviation
time - Current time hh:mm:ss
timems - Current time hh:mm:ss:mmm (with millisecond)
timestamp - Returns the number of seconds since jan 1 2001 00:00:00
timeout - Current Time out in ms
version - Retuns the SCPI-Commander version
SET [variable] [value]
Creates and store value
Example
Set a 10
Set a @b Set a to the same value as b
INT [variable] [value]
Stores the integer value [value] into variable [variable]
Example
int a @a
& [variable] [string] [string] ...
Appends the [string] (strings) to the variable contents
Example
set a 56
& a " kilo" "grams"
? a
-> 56 kilograms
SAVEBIN [variable] [filename]
Saves the binary block contained in [variable] to [filename]
Example
SaveBIN @data "values.bin"
Flow Control
SPEED [ms]
Changes the execution speed of the script. Each command will be execute with minimum ms delay. If no arguments it will default to 100 ms. The value can be between 0 and 5000 ms.
Example
Speed 10
Speed
STOP
Stops the execution of the script.
Example
Stop
ONERROR
All code following ONERROR will be executed whenever an error occurs in the main script. ONERROR routine must be the last routine in the script. Any error in the ONERROR routine will stop the script.
Example
ONERROR
? "Error occurred"
ERROR
Triggers a user generated error and will jump to the ONERROR routine if it exists, otherwise the script will stop with an error,
Example
Error
PAUSE
*BR
Pauses the script and shows "Break Point". You can now step through the script row by row. Continue the script by pressing RUN or stop by pressing STOP
WAIT [ms]
Pauses the execution.
If no argument default to 500 ms
Example
Wait 1000
LABEL [labelName]
LBL [labelName]
Defines label in the script where it's possible to jump to.
Example
Label JumpHere
JMP [rows]
JMP [label]
GOTO [rows]
GOTO [label]
Jump/Goto to row. Positive number jumps forward, negative backwards.
Jumo/Goto label. See label.
Example
Jmp 3
Jmp -4
Jmp @a
Jmp label1
Jmp NextNum
Loop Commands
LOOP [end value] [step value]
Initiates a loop that will loop from 0 to using step
NEXT
Execute the next loop iteration
Example
Loop 10 1
? @index
Next
Display Commands
DISP [arg1] [arg2] [argN]
? [arg1] [arg2] [argN]
DISP- [arg1] [arg2] [argN]
?- [arg1] [arg2] [argN]
Display the arguments separated with a space. Variables will be replaced with the value. If no argument is supplied an empty row will be displayed. If the command ends with - (minus sign) a new line is not printed at the end.
If you want to have newline in the middle of a string you can type \n.
Examples
Disp "This is just one argument"
? This is several arguments
?
Disp- "Measured volt " @volt " V"
?- Measured current is @current " A"
? "Row 1\nRow 2\Row 3"
DISPBIN [number] [bits]
?BIN [number] [bits]
DISPBIN- [number] [bits]
?BIN- [number] [bits]
Display the [number] in binary format with [bits] bits. If the command ends with - (minus sign) a new line is not printed at the end.
Example:
?bin 255 8 -> 11111
?bin 7 8 -> 00000111
?bin 255 4 -> 1111
DISPBB [variable] [rows]
DISPBB [variable]
?B [variable] [rows]
?B [variable]
Displays information about a binary block stored in [variable]. On each row 8 bytes is displayed as hex-values and ascii-characters:
Example
DispB @data 20
Compare Commands
IF= [value1] [value2] [rows | label]
IF!= [value1] [value2] [rows | label]
IF< [value1] [value2] [rows | label]
IF> [value1] [value2] [rows | label]
IF<= [value1] [value2] [rows | label]
IF>= [value1] [value2] [rows | label]
= [value1] [value2] [rows | label]
!= [value1] [value2] [rows | label]
<> [value1] [value2] [rows | label]
< [value1] [value2] [rows | label]
> [value1] [value2] [rows | label]
<= [value1] [value2] [rows | label]
>= [value1] [value2] [rows | label]
Compares value1 with value2 and if it's true jumps rows [rows] or to label. Only compares numbers, not strings. See label.
Example
set a 10
set b 10
IF= @a @b 3
disp "Not Equal"
jmp 2
disp "Equal"
if< @a @b lessThan
Math Commands
ADD [variable] [value]
SUB [variable] [value]
MUL [variable] [value]
DIV [variable] [value]
MOD [variable] [value]
PER [variable] [value]
+ [variable] [value]
- [variable] [value]
* [variable] [value]
/ [variable] [value]
% [variable] [value]
Execute the math function on variable [variable] with value [value]
Percentage add or removes percentage [value]
Example
add @a 45
- @a 10
% @a -50
INT [variable] [value]
INT [variable]
Stores the integer value [value] into variable [variable]
Example
int a @a
int b
ROUND [variable] [value]
ROUND [variable]
Round the [value] to 2 significant digits and store into [variable]
Round the value stored in [variable] to 2 significant digits.
Example
round a @a
round b
RND [variable]
Stores a random float number between 0 and 1 into variable.
BIT Commands
BITSET? [variable] [bitnr] [jump]
BS? [variable] [bitnr] [jump]
BITCLR? [variable] [bitnr] [jump]
BC? [variable] [butnr] [jump]
Test to see if a bit is set (BITSET, BS) or cleared (BITCLR?, BC?) and jumps if true.
Example
BitSet? @a 4 BitSet
BC? @a 1 BitClr
SETBIT [variable] [bitnr]
SB [variable] [bitnr]
CLRBIT [variable] [bitnr]
CBN [variable] [bitnr]
Sets (SETBIT or SB) or clears (CLRBIT or CB) a bit of the value in variable.
Example
SETBIT a 5
CB a 3
ANDBIT [variable] [value]
AND [variable] [value]
ORBIT [variable] [value]
OR [variable] [value]
XORBIT [variable] [value]
XOR [variable] [value]
Perform the bitwise operation with value on the content of variable
Example
ANDBIT a 170
XOR a 85
NOTBIN8 [variable]
NOT8 [variable]
NOTBIN16 [variable]
NOT16 [variable]
Inverts all bits (8 or 16) of the variable content.
Example
NOTBIN8 a
NOT16 b
SHIFTR8 [variable] [shifts]
SR8 [variable] [shifts]
SHIFTR16 [variable] [shifts]
SR16 [variable] [shifts]
SHIFTL8 [variable] [shifts]
SL8 [variable] [shifts]
SHIFTL16 [variable] [shifts]
SL16 [variable] [shifts]
Shifts the bit in the variable to left or right, and shift 8 or 16 bits.
Example
ShifL8 a 2
SR16 a 3
Read and Write to instrument Commands
OUT [arg1] ... [argN]
Combines all argument into a string where each argument is added after each other with no space between and send it to the connected instrument.
Example
out "*idn?"
out "*rst"
out ":meas:volt:chan @" @a
IN [variable]
Read back the response from the connected instrument. If there is no response a time-out error will be throw after the set time out value has passed.
Example
in a
disp @a
INF [variable]
Read back the response from the connected instrument and try to convert to float.. If there is no response a time-out error will be throw after the set time out value has passed.
Example
inf a
disp @a
INI [variable]
Read back the response from the connected instrument and try to convert to integer. If there is no response a time-out error will be throw after the set time out value has passed.
Example
in a
disp @a
INB [variable]
Read back the response from the instrument, expecting it to be a binary block
Example
inb data
TIMEOUT [ms]
TIMEOUT
Changes the timeout value to [ms]. If no argument defaults to 10000 ( 10s )
CSV COMMANDS
NEWCSV [file]
Creates a new CSV file. If the previous is not closed by CLOSECSV it will be erased.
Example
NewCSV voltlog.cvs
ADDCSV [arg1] [arg2] ... [argn]
Adds all arguments to the csv file comma separated
Example
AddCSV @time @volt
ADDNLCSV [arg1] [arg2] ... [argn]
Adds all arguments to the csv file comma separated followed by new line.
If no arguments then a new line is added.
Example
AddNLCSV @time @volt
ADDVARCSV [variable]
Adds the contents of the [variable], removes binary block header if present.
Example:
speed 10
open 10.2.1.61
”:wav:form ascii”
”:wav:poin 10”
:wav:data?
in b
newcsv data.csv
Addvarcsv @b
CLOSECSV
Close the csv file and save it.
Example
CloseCSV
SAVECSV [fileName] [csvVariable]
Saves the csvVariable to file fileName.
Example
SaveCSV measurement @logvar
GETCSVVALUE [variable] [position] [csvstring]
#CSV [variable] [position] [csvstring]
Get the value at certain position in a CSV-string
Example
GetCSVValue Yorig 0 @csvvar
PICTURE COMMANDS
SAVEPIC [variable] [filename]
Saves the binary block as picture (format depends on instrument) to [filename]. The binary block header is removed before saving, assuming the rest is picture data.
Example
Open 10.2.1.61
":DISP:DATA? PNG, COLOR"
Wait 5000 // wait for instrument to finish
Inb pic
SavePic @pic "test.png"
SHOWPIC [variable] [heading]
SHOWPIC [variable]
Open a view and shows the picture stored in [variable] and print [heading] above. The picture shown can be copied to the camera roll or be printed.
Example:
speed 10
open 10.2.1.61
*idn?
in idn
":HARD:INK OFF"
":DISP:DATA? PNG, COLOR"
wait 3000
inb b
?b @b 100
showpic @b @idn
CLOSEPIC
Closes the show picture view if it's open
Example:
ClosePic
NEWPICLABEL [label]
NEWPICLABEL
Updates the label text in the show picture view to [label], if no argument clears the label
Example
NewPicLabel "A new label"
ALERT COMMANDS
ALERTOK [header[ [message]
Displays a alert with message and header, and a OK Button. All arguments following message are combined into one message,.
Example
AlertOk "A header" "A little message
ALERTOKCANCEL [variable] [header] [question]
Displays an alert with a question and header, with an OK and a CANCEL button. If ok is pressed "1" is stored in variable, otherwise "0". All arguments following question are combined into one message,.
Example
AlertOkCancel answer "A question" "Is the value correct?"
ALERTASK [variable] [header] [message]
Displays an alert with a field where the user can type a responds. The response is stored in the variable. All arguments following message are combined into one message,.
Example
AlertAsk ans "Your Answer" "Enter a Number"
BANNER [duration = S | A | L] [type = S | E | W ı I] [message]
Displays a banner for a duration and a certain type with message. All arguments following message are combined into one message,.
Duration:
S = Short 2s
A = Average 4s
L = Long 8s
Type:
S = Success green color
E = Error red color
W = Warning yellöow color
I = Info blue color
Examples
banner s s "Everthingh went ok"
banner success short "Everthingh went ok""
MISC COMMANDS
BEEP
VBR
Vibrates the phone
MANUF [idnstring]
MODEL [idnstring]
SERIAL [idnstring]
FW [idnstring]
Get the component from the idn string [idnstring], manufacturer, model, serial and firmware version if they exist. It assumes the idn string has components in the following order "manufacturer,model,serial,fw"
CLEAR
Clears the log.
#BYTES [variable] [binbuff]
Stores the number of bytes into variable that the binbuff consist of,
Example
#Bytes a binfuf
SEND TO INSTRUMENT
Any commands not recognized by the script engine will be sent to the connected instrument.
If you for example have the following row:
OUTP ON,(@1,2)
The scrip engine will try to parse this and replace variables with their value etc, so the string actual send is:
OUTPON,(@1,2)
the space is considered a command separator and is removed (this is by designs as you will se later) and this will not be understood by the instrument. You should instead write it like this:
"OUTP ON,(@1,2)"
This is designed like this so you can construct the string that will be send by using variables. Maybe you want calculate what channel will be used in the command. Like this:
set a 1
set b 2
"OUTP ON,(@" @a , @b )
This will create the following string (a and b is substituted with their actual value)
OUTP ON,(@1,2)
STATISTICAL COMMANDS
STATINIT
Initiates the statistical array for new sample. Note the statistical array is not cleared between executions.
Example
StatInit
STATADD [value]
STAT+ [value]
Adds a value to the statistical array
Example
StatAdd @a
Stat+ 5.7
AVERAGE [variable]
AVG [variable]
MEAN [variable]
MAX [variable]
MIN [variable]
STAT# [variable]
MEDIAN [variable]
MED [variable]
STDDEV [variable]
Calculates the statistical function: Mean value (AVERAGE,AVG or MEAN), Max Value, Min Value, Number of values (STAT#), Median value (MEDIAN or MED) or Standard deviation (STDDEV)
Example
Mean a
Stddev b
STATSORT+
STATSORT-
Sort the statistical array from high to low (STATSORT+) or low to high (STARTSORT-)
Example
StartSort+
StatSort-
GETSTAT [variable] [index]
Get the statistical value at index into variable
Example
GetStat a 4
SAVESTAT [filename] [type]
Save the statistical values into a csv-file. type 0 = raw unsorted, 1 = raw sorted, 2 = sorted and frequency.
Example
Savestat mystat.csv
PLOT AND GRAPH COMMANDS
PLOTSTATBAR [label]
PLOTSTATLINE [label]
Plots a graph using the statistical data collected using the statistical commands. It will plot either a Bar graph (PlotStatBar) or Line Graph (PlotStatLine). The label is optional.
Example
PlotStatBar "Temperature Bra Graph"
PlotStatLine
PLOTCSVBIN [binblock] [label]
Plots the binary block where the data is comma separated ascii values (CSV). The label is optional.
Example
PlotCSVBin @binblock "Sinus"
PlotCSVBin @binblock
PLOTBIN [binblock] [label] [Yorigin] [Yincrement] [Yreference] [datasize]
Plots the binary block where the data is either byte or word size. The label optional (See Appendix B)
Yorigin - The original start of the Y-axis
Yincrement - The increment of the Y-axis
Yreference - The reference value used to convert from byte or word to floating value
datasize - 0 = byte, 1 = Word
The values for Yoriginal, Yincrement, Yreference and datasize is values read from the instrument.
Example: For the Keysight Infiniivision oscilloscope the following command sequence gets the required info:
”:wav:pre?”
in s
GetCSVvalue yinc 7 @s
GetCSVvalue yori 8 @s
GetCSVvalue yref 9 @s
GetCSVvalue datasize 0 @s
PlotBin @binblock ”Binblock Plot” @yori @yinc @yref @datasize
BYTEORDER [MSBF | LSBF]
Defines the sequence of bytes in binary block where datasize is word:
LSBF - Least Significant Byte First
MSBF - Most Significan Byte first
The default is MSBF and will be reset each time the script is executed, since this is the default.
If no arguments is given, it defaults to MSBF.
Example
ByteOrder LSBF'
XAXIS# [Xorigin] [Xincrement] [Xreference] [Sacelfactor]
Set the values to be used for the X-Axis ( See Appendix B)
Xorigin - The original start of the X-axis
Xincrement - The increment of the X-axis
Xreference - The X-reference value
Scalefactor - The factor to scale the X-axis, ex. 1000000 gives micro-seconds
Example
Xaxis# @xori @xinc @xref 1000000
XSCALE [ON | OFF]
Turns ON or OFF the scaling of the X-axis
Example
XScale Off
BARCOLOR [color | et]
Change to either one color for all bars or set with different color for each bar
One color:
Darkgreen
Green
Darkred
Red
Darkblue
Blue
Sets:
Set1
Set2
Set3
Set4
Set5
Example:
BarColor Blue
BarColor Set4
LINECOLOR [color]
Set the color lines will be drawn wither in statistical line graph or binary plot.
Darkgreen
Green
Darkred
Red
Darkblue
Blue
Example:
LineColor blue
PLOTCSV [csvString] [label]
Plots the CSV values in thecsvString
Example:
plotcsv @measuredCsv
plotcsv @measuredCsv "Measured Data"
CLOSEPLOT
CLOSECHART
Closes the plot/chart view if it's open
Example
CloseChart
OPENPLOT
OPENCHART
Opens the plot/chart view
Example
OpenChart
CLEARPLOT
CLEARCHART
If the plot/chart view is open, the chart is cleared immediately.
If the plot/chart view is not opened, the chart is cleared when is opened.
Example
ClearChart
----------------------------------
APPENDIX A
Error messages and the error No
0 - Ok
1 - To Few Arguments
2 - Time Out
3 - Variable Not Found
4 - Next without Loop
5 - Division by Zero
6 - No Instrument Connected
7 - Not a Number
8 - Not a Valid Variable
9 - Invalid Argument
10 - File Error
11 - Undefined label
12 - Stat array not initialized
13 - No values to calculate statistics
14 -Invalid binary buffer
Visa Specific Error
101 - Could Not Connect
102 - Not Connected
103 - Could not Read from Instrument
104 - Time Out Occurred
105 - Could not Write to Instrument
106 - No String Received from Instrument
Error Command
200 - User Generated Error

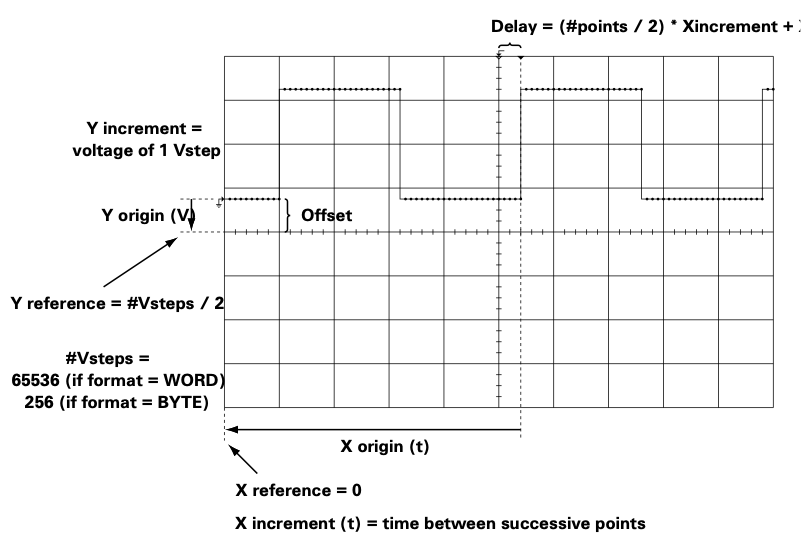

APPENDIX B
X- and Y- axis scaling
Comments starts by:
//
Everything after // is treated as comment and will be ignored.
If a // is the only command on a row it still will take time to process (defined by the speed).
The commands can be written with any case you want (upper, lower or mixed).
If it's an unknown command it will be sent to the connected instrument. Se the chapter "send to instrument" for important information abut formatting the string to send to instrument.
NOP
Don't do anything expect pause the time as set by speed
Floating point numbers
NOTE! All floating point handling is done using dot "." as decimal separator since this is the format used by the instruments.›
Arguments
Arguments to all the commands are separated with space, if you want to include space in the argument use double quote. To use a variables value precede the argument with @.
Examples
argument
volt
"also one argument"
@volt
Connection Commands
OPEN [address] [port]
Open connection to instrument at using
If
If no arguments are supplied it will open
connection to the instrument opened in
connection view.
Example
Open 10.0.1.1 5025
Open 10.1.1.1
Open
OPENF [favorite]
Open connection to the favorite [favorite] saved in the connection view. can be between 1 and last favorite.
Example
Openf 1
CLOSE
Closes the current connection.
This command is not necessary to use since the script engine takes care of closing open connection automatically. It's only included for completeness.
Example
Close
BUFFSIZE [size]
BUFFSIZE
Changes the read buffer size to [size] for the next open. If non argument the defaults t0 4096.
Min: 1024 (1 Kilobyte)
Max: 1073841824 ( 1 Gigabyte)
Default: 4096 (4 Kilobytes)
Variable Commands
Variables can be named anything (exception see below), UPPER and lowercase is different.
To get the variables content begin variable name with @.
Reserved variables:
average# - Average of statistics
avg# - Average of statistics
buffsize - Current buffer size
buildnr - Returns the SCPI-Commande buildnr
currentrow - Current executing row
date - Current date in local short form
errormsg - The last error message, empty then no error
errorno - Last error number, see appendix
errorrow - Row number of the last error, -1 no error
index - Current loop index value
max# - Maximum value of statistics
mean# - Average of statistics
median# - Median of statistics
med# - Median of statistics
min# - Minimum values of statistics
scriptname - Name of current script.
- ”(not saved)” if not saved
speed - Returns the current speed
stat# - Number of statistical values
stddev# - Standard deviation
time - Current time hh:mm:ss
timems - Current time hh:mm:ss:mmm (with millisecond)
timestamp - Returns the number of seconds since jan 1 2001 00:00:00
timeout - Current Time out in ms
version - Retuns the SCPI-Commander version
SET [variable] [value]
Creates
Example
Set a 10
Set a @b Set a to the same value as b
INT [variable] [value]
Stores the integer value [value] into variable [variable]
Example
int a @a
& [variable] [string] [string] ...
Appends the [string] (strings) to the variable contents
Example
set a 56
& a " kilo" "grams"
? a
-> 56 kilograms
SAVEBIN [variable] [filename]
Saves the binary block contained in [variable] to [filename]
Example
SaveBIN @data "values.bin"
Flow Control
SPEED [ms]
Changes the execution speed of the script. Each command will be execute with minimum ms delay. If no arguments it will default to 100 ms. The value can be between 0 and 5000 ms.
Example
Speed 10
Speed
STOP
Stops the execution of the script.
Example
Stop
ONERROR
All code following ONERROR will be executed whenever an error occurs in the main script. ONERROR routine must be the last routine in the script. Any error in the ONERROR routine will stop the script.
Example
ONERROR
? "Error occurred"
ERROR
Triggers a user generated error and will jump to the ONERROR routine if it exists, otherwise the script will stop with an error,
Example
Error
PAUSE
*BR
Pauses the script and shows "Break Point". You can now step through the script row by row. Continue the script by pressing RUN or stop by pressing STOP
WAIT [ms]
Pauses the execution
If no argument default to 500 ms
Example
Wait 1000
LABEL [labelName]
LBL [labelName]
Defines label in the script where it's possible to jump to.
Example
Label JumpHere
JMP [rows]
JMP [label]
GOTO [rows]
GOTO [label]
Jump/Goto to row
Jumo/Goto label. See label.
Example
Jmp 3
Jmp -4
Jmp @a
Jmp label1
Jmp NextNum
Loop Commands
LOOP [end value] [step value]
Initiates a loop that will loop from 0 to
NEXT
Execute the next loop iteration
Example
Loop 10 1
? @index
Next
Display Commands
DISP [arg1] [arg2] [argN]
? [arg1] [arg2] [argN]
DISP- [arg1] [arg2] [argN]
?- [arg1] [arg2] [argN]
Display the arguments separated with a space. Variables will be replaced with the value. If no argument is supplied an empty row will be displayed. If the command ends with - (minus sign) a new line is not printed at the end.
If you want to have newline in the middle of a string you can type \n.
Examples
Disp "This is just one argument"
? This is several arguments
?
Disp- "Measured volt " @volt " V"
?- Measured current is @current " A"
? "Row 1\nRow 2\Row 3"
DISPBIN [number] [bits]
?BIN [number] [bits]
DISPBIN- [number] [bits]
?BIN- [number] [bits]
Display the [number] in binary format with [bits] bits. If the command ends with - (minus sign) a new line is not printed at the end.
Example:
?bin 255 8 -> 11111
?bin 7 8 -> 00000111
?bin 255 4 -> 1111
DISPBB [variable] [rows]
DISPBB [variable]
?B [variable] [rows]
?B [variable]
Displays information about a binary block stored in [variable]. On each row 8 bytes is displayed as hex-values and ascii-characters:
Example
DispB @data 20
Compare Commands
IF= [value1] [value2] [rows | label]
IF!= [value1] [value2] [rows | label]
IF< [value1] [value2] [rows | label]
IF> [value1] [value2] [rows | label]
IF<= [value1] [value2] [rows | label]
IF>= [value1] [value2] [rows | label]
= [value1] [value2] [rows | label]
!= [value1] [value2] [rows | label]
<> [value1] [value2] [rows | label]
< [value1] [value2] [rows | label]
> [value1] [value2] [rows | label]
<= [value1] [value2] [rows | label]
>= [value1] [value2] [rows | label]
Compares value1 with value2 and if it's true jumps rows [rows] or to label. Only compares numbers, not strings. See label.
Example
set a 10
set b 10
IF= @a @b 3
disp "Not Equal"
jmp 2
disp "Equal"
if< @a @b lessThan
Math Commands
ADD [variable] [value]
SUB [variable] [value]
MUL [variable] [value]
DIV [variable] [value]
MOD [variable] [value]
PER [variable] [value]
+ [variable] [value]
- [variable] [value]
* [variable] [value]
/ [variable] [value]
% [variable] [value]
Execute the math function on variable [variable] with value [value]
Percentage add or removes percentage [value]
Example
add @a 45
- @a 10
% @a -50
INT [variable] [value]
INT [variable]
Stores the integer value [value] into variable [variable]
Example
int a @a
int b
ROUND [variable] [value]
ROUND [variable]
Round the [value] to 2 significant digits and store into [variable]
Round the value stored in [variable] to 2 significant digits.
Example
round a @a
round b
RND [variable]
Stores a random float number between 0 and 1 into variable.
BIT Commands
BITSET? [variable] [bitnr] [jump]
BS? [variable] [bitnr] [jump]
BITCLR? [variable] [bitnr] [jump]
BC? [variable] [butnr] [jump]
Test to see if a bit is set (BITSET, BS) or cleared (BITCLR?, BC?) and jumps if true.
Example
BitSet? @a 4 BitSet
BC? @a 1 BitClr
SETBIT [variable] [bitnr]
SB [variable] [bitnr]
CLRBIT [variable] [bitnr]
CBN [variable] [bitnr]
Sets (SETBIT or SB) or clears (CLRBIT or CB) a bit of the value in variable.
Example
SETBIT a 5
CB a 3
ANDBIT [variable] [value]
AND [variable] [value]
ORBIT [variable] [value]
OR [variable] [value]
XORBIT [variable] [value]
XOR [variable] [value]
Perform the bitwise operation with value on the content of variable
Example
ANDBIT a 170
XOR a 85
NOTBIN8 [variable]
NOT8 [variable]
NOTBIN16 [variable]
NOT16 [variable]
Inverts all bits (8 or 16) of the variable content.
Example
NOTBIN8 a
NOT16 b
SHIFTR8 [variable] [shifts]
SR8 [variable] [shifts]
SHIFTR16 [variable] [shifts]
SR16 [variable] [shifts]
SHIFTL8 [variable] [shifts]
SL8 [variable] [shifts]
SHIFTL16 [variable] [shifts]
SL16 [variable] [shifts]
Shifts the bit in the variable to left or right, and shift 8 or 16 bits.
Example
ShifL8 a 2
SR16 a 3
Read and Write to instrument Commands
OUT [arg1] ... [argN]
Combines all argument into a string where each argument is added after each other with no space between and send it to the connected instrument.
Example
out "*idn?"
out "*rst"
out ":meas:volt:chan @" @a
IN [variable]
Read back the response from the connected instrument. If there is no response a time-out error will be throw after the set time out value has passed.
Example
in a
disp @a
INF [variable]
Read back the response from the connected instrument and try to convert to float.. If there is no response a time-out error will be throw after the set time out value has passed.
Example
inf a
disp @a
INI [variable]
Read back the response from the connected instrument and try to convert to integer. If there is no response a time-out error will be throw after the set time out value has passed.
Example
in a
disp @a
INB [variable]
Read back the response from the instrument, expecting it to be a binary block
Example
inb data
TIMEOUT [ms]
TIMEOUT
Changes the timeout value to [ms]. If no argument defaults to 10000 ( 10s )
CSV COMMANDS
NEWCSV [file]
Creates a new CSV file. If the previous is not closed by CLOSECSV it will be erased.
Example
NewCSV voltlog.cvs
ADDCSV [arg1] [arg2] ... [argn]
Adds all arguments to the csv file comma separated
Example
AddCSV @time @volt
ADDNLCSV [arg1] [arg2] ... [argn]
Adds all arguments to the csv file comma separated followed by new line.
If no arguments then a new line is added.
Example
AddNLCSV @time @volt
ADDVARCSV [variable]
Adds the contents of the [variable], removes binary block header if present.
Example:
speed 10
open 10.2.1.61
”:wav:form ascii”
”:wav:poin 10”
:wav:data?
in b
newcsv data.csv
Addvarcsv @b
CLOSECSV
Close the csv file and save it.
Example
CloseCSV
SAVECSV [fileName] [csvVariable]
Saves the csvVariable to file fileName.
Example
SaveCSV measurement @logvar
GETCSVVALUE [variable] [position] [csvstring]
#CSV [variable] [position] [csvstring]
Get the value at certain position in a CSV-string
Example
GetCSVValue Yorig 0 @csvvar
PICTURE COMMANDS
SAVEPIC [variable] [filename]
Saves the binary block as picture (format depends on instrument) to [filename]. The binary block header is removed before saving, assuming the rest is picture data.
Example
Open 10.2.1.61
":DISP:DATA? PNG, COLOR"
Wait 5000 // wait for instrument to finish
Inb pic
SavePic @pic "test.png"
SHOWPIC [variable] [heading]
SHOWPIC [variable]
Open a view and shows the picture stored in [variable] and print [heading] above. The picture shown can be copied to the camera roll or be printed.
Example:
speed 10
open 10.2.1.61
*idn?
in idn
":HARD:INK OFF"
":DISP:DATA? PNG, COLOR"
wait 3000
inb b
?b @b 100
showpic @b @idn
CLOSEPIC
Closes the show picture view if it's open
Example:
ClosePic
NEWPICLABEL [label]
NEWPICLABEL
Updates the label text in the show picture view to [label], if no argument clears the label
Example
NewPicLabel "A new label"
ALERT COMMANDS
ALERTOK [header[ [message]
Displays a alert with message and header, and a OK Button. All arguments following message are combined into one message,.
Example
AlertOk "A header" "A little message
ALERTOKCANCEL [variable] [header] [question]
Displays an alert with a question and header, with an OK and a CANCEL button. If ok is pressed "1" is stored in variable, otherwise "0". All arguments following question are combined into one message,.
Example
AlertOkCancel answer "A question" "Is the value correct?"
ALERTASK [variable] [header] [message]
Displays an alert with a field where the user can type a responds. The response is stored in the variable. All arguments following message are combined into one message,.
Example
AlertAsk ans "Your Answer" "Enter a Number"
BANNER [duration = S | A | L] [type = S | E | W ı I] [message]
Displays a banner for a duration and a certain type with message. All arguments following message are combined into one message,.
Duration:
S = Short 2s
A = Average 4s
L = Long 8s
Type:
S = Success green color
E = Error red color
W = Warning yellöow color
I = Info blue color
Examples
banner s s "Everthingh went ok"
banner success short "Everthingh went ok""
MISC COMMANDS
BEEP
VBR
Vibrates the phone
MANUF [idnstring]
MODEL [idnstring]
SERIAL [idnstring]
FW [idnstring]
Get the component from the idn string [idnstring], manufacturer, model, serial and firmware version if they exist. It assumes the idn string has components in the following order "manufacturer,model,serial,fw"
CLEAR
Clears the log.
#BYTES [variable] [binbuff]
Stores the number of bytes into variable that the binbuff consist of,
Example
#Bytes a binfuf
SEND TO INSTRUMENT
Any commands not recognized by the script engine will be sent to the connected instrument.
If you for example have the following row:
OUTP ON,(@1,2)
The scrip engine will try to parse this and replace variables with their value etc, so the string actual send is:
OUTPON,(@1,2)
the space is considered a command separator and is removed (this is by designs as you will se later) and this will not be understood by the instrument. You should instead write it like this:
"OUTP ON,(@1,2)"
This is designed like this so you can construct the string that will be send by using variables. Maybe you want calculate what channel will be used in the command. Like this:
set a 1
set b 2
"OUTP ON,(@" @a , @b )
This will create the following string (a and b is substituted with their actual value)
OUTP ON,(@1,2)
STATISTICAL COMMANDS
STATINIT
Initiates the statistical array for new sample. Note the statistical array is not cleared between executions.
Example
StatInit
STATADD [value]
STAT+ [value]
Adds a value to the statistical array
Example
StatAdd @a
Stat+ 5.7
AVERAGE [variable]
AVG [variable]
MEAN [variable]
MAX [variable]
MIN [variable]
STAT# [variable]
MEDIAN [variable]
MED [variable]
STDDEV [variable]
Calculates the statistical function: Mean value (AVERAGE,AVG or MEAN), Max Value, Min Value, Number of values (STAT#), Median value (MEDIAN or MED) or Standard deviation (STDDEV)
Example
Mean a
Stddev b
STATSORT+
STATSORT-
Sort the statistical array from high to low (STATSORT+) or low to high (STARTSORT-)
Example
StartSort+
StatSort-
GETSTAT [variable] [index]
Get the statistical value at index into variable
Example
GetStat a 4
SAVESTAT [filename] [type]
Save the statistical values into a csv-file. type 0 = raw unsorted, 1 = raw sorted, 2 = sorted and frequency.
Example
Savestat mystat.csv
PLOT AND GRAPH COMMANDS
PLOTSTATBAR [label]
PLOTSTATLINE [label]
Plots a graph using the statistical data collected using the statistical commands. It will plot either a Bar graph (PlotStatBar) or Line Graph (PlotStatLine). The label is optional.
Example
PlotStatBar "Temperature Bra Graph"
PlotStatLine
PLOTCSVBIN [binblock] [label]
Plots the binary block where the data is comma separated ascii values (CSV). The label is optional.
Example
PlotCSVBin @binblock "Sinus"
PlotCSVBin @binblock
PLOTBIN [binblock] [label] [Yorigin] [Yincrement] [Yreference] [datasize]
Plots the binary block where the data is either byte or word size. The label optional (See Appendix B)
Yorigin - The original start of the Y-axis
Yincrement - The increment of the Y-axis
Yreference - The reference value used to convert from byte or word to floating value
datasize - 0 = byte, 1 = Word
The values for Yoriginal, Yincrement, Yreference and datasize is values read from the instrument.
Example: For the Keysight Infiniivision oscilloscope the following command sequence gets the required info:
”:wav:pre?”
in s
GetCSVvalue yinc 7 @s
GetCSVvalue yori 8 @s
GetCSVvalue yref 9 @s
GetCSVvalue datasize 0 @s
PlotBin @binblock ”Binblock Plot” @yori @yinc @yref @datasize
BYTEORDER [MSBF | LSBF]
Defines the sequence of bytes in binary block where datasize is word:
LSBF - Least Significant Byte First
MSBF - Most Significan Byte first
The default is MSBF and will be reset each time the script is executed, since this is the default.
If no arguments is given, it defaults to MSBF.
Example
ByteOrder LSBF'
XAXIS# [Xorigin] [Xincrement] [Xreference] [Sacelfactor]
Set the values to be used for the X-Axis ( See Appendix B)
Xorigin - The original start of the X-axis
Xincrement - The increment of the X-axis
Xreference - The X-reference value
Scalefactor - The factor to scale the X-axis, ex. 1000000 gives micro-seconds
Example
Xaxis# @xori @xinc @xref 1000000
XSCALE [ON | OFF]
Turns ON or OFF the scaling of the X-axis
Example
XScale Off
BARCOLOR [color | et]
Change to either one color for all bars or set with different color for each bar
One color:
Darkgreen
Green
Darkred
Red
Darkblue
Blue
Sets:
Set1
Set2
Set3
Set4
Set5
Example:
BarColor Blue
BarColor Set4
LINECOLOR [color]
Set the color lines will be drawn wither in statistical line graph or binary plot.
Darkgreen
Green
Darkred
Red
Darkblue
Blue
Example:
LineColor blue
PLOTCSV [csvString] [label]
Plots the CSV values in thecsvString
Example:
plotcsv @measuredCsv
plotcsv @measuredCsv "Measured Data"
CLOSEPLOT
CLOSECHART
Closes the plot/chart view if it's open
Example
CloseChart
OPENPLOT
OPENCHART
Opens the plot/chart view
Example
OpenChart
CLEARPLOT
CLEARCHART
If the plot/chart view is open, the chart is cleared immediately.
If the plot/chart view is not opened, the chart is cleared when is opened.
Example
ClearChart
----------------------------------
APPENDIX A
Error messages and the error No
0 - Ok
1 - To Few Arguments
2 - Time Out
3 - Variable Not Found
4 - Next without Loop
5 - Division by Zero
6 - No Instrument Connected
7 - Not a Number
8 - Not a Valid Variable
9 - Invalid Argument
10 - File Error
11 - Undefined label
12 - Stat array not initialized
13 - No values to calculate statistics
14 -Invalid binary buffer
Visa Specific Error
101 - Could Not Connect
102 - Not Connected
103 - Could not Read from Instrument
104 - Time Out Occurred
105 - Could not Write to Instrument
106 - No String Received from Instrument
Error Command
200 - User Generated Error
APPENDIX B
X- and Y- axis scaling
